The RinGenie™ is a money making time saver invented by a jeweler who sets engraves and sets stones for a living.
Ring Engraving, Stone Setting, Bright Cutting and Bead Setting Work Holding System-Also Layout and Inlay Work-Made in the USA

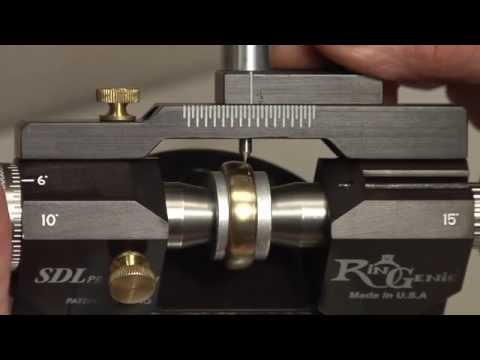

The RinGenie™ helps jewelers with a variety of tasks, allowing for precision and speed in accomplishing the typical stone setting and engraving tasks that a professional bench jeweler encounters daily. With it, you can quickly set up a ring to do layout, drilling and milling then start engraving or stone setting all with the same jig.
The RinGenie™ is a precision tool made in the USA out of aircraft quality brushed aluminum. You can use it mounted in an engraving block, vise or a GRS BenchMate when used with the optional GRS BenchMate Attachment. Mount your ring using one of the collets from the 2 complete collet sets and you will have fine incremental settings with 360 degree rotation. Lock down using the thumb screw and your ring is securely held for stone setting or engraving. The included Mill/Drill/Layout Assembly can be quickly attached to allow for precision layout by simply pushing down the spring loaded punch that marks the metal for hand drilling. An optional RinGenie A050 Angle Adapter (148.245, see below) will do the same thing but pivots side to side for marking the sides of domed rings. Use the optional RinGenie A101 Side Helper (148.243 see below) for holding rings face up or down to work on the sides of rings.
The RinGenie Master Kit contains:
- Body
- Drill/Mill/Layout Assembly
- Scriber Assembly
- 3/32 Diameter Hardened Drill bushing
- Alignment Plate
- Tightening Rods (2)
- Side Pointer
- Drag Adjustment Screw
- 8 Plastic Collets (USA ring sizes: 5, 6, 7, 8, 9, 10, 11 & 12)
- 16 Aluminum Collets (USA ring sizes: 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12 & 12.5)
- Custom Fitted Wood Case
Jennifer Anderson
“I absolutely love the RinGenie! My work has benefited greatly with the use of the RinGenie. Pave', channel, flush, any kind of setting, engraving or layout is so much easier. I no longer have to remove rings as I work on them allowing me to work freely all across the surface with a simple turn. Working is smooth and fluid. I find myself reaching for this tool again and again. I also love the RinGenie Side Helper and would never want to be without it. No other tool allows so much access to the side profile of rings! Fantastic tools!
Jennifer Anderson GG, GJ, AJA, AJP | Bench Jeweler C & C Fine Jewelry
Traverse City, MI
