Unified Hotshot M100 Fiber Laser Engraving System 100W

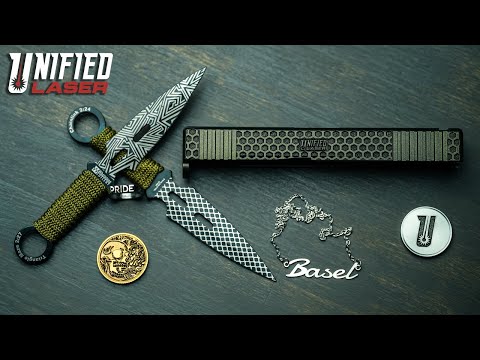

The Unified HotShot M100 Enclosed features a straightforward modular design for maximum versality in a space-saving package. Precision tuned to delicately mark or deep engrave any metal as well as certain polymers, plastics, ceramics and several other materials. Two Quartz F-Theta lenses are included, providing ultimate precision and flexibility for your application.

Every system completes a full power calibration and field size correction. This ensures accurate and consistent results every time.


Aspect	Specification
Laser Type	MOPA Pulse Fiber Laser
Platform	Class 4/Open
Wave Length	1064nm +/- 5nm
Pulse Energy (Maximum)	1.5 mJ
Average Power (Maximum)	100W
Full Power Frequency Range	40 - 4000 kHz
Beam Quality (M²)	<1.6
Pulse Width	100 nns
Scanhead Speed (Maximum)	8,000 mm/sec - 315 in/sec
Engraving Area (Maximum)	F-Theta lens dependent
Optical Positioning Laser	Visible red-beam laser for easy alignment
F-Theta Lens (mm)	70, 110, 175
Power Requirements	120V (± 10%) 16amp, 50/60Hz
Operating Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	24"L x 20"W x 30"H
Weight	140 lbs. / 64Kg
Z Axis Adjustment Type	Manual & Motorized With Potentiometer
Rotary Orientation Capabilities	Inside and Outside
Spot Size Range	15um - 80um / 0.0006" - 0.003"
Cooling Type	Air Cooled (Internal)
