110V / 120V supply only. This unit is built for standard North American household current (110V / 120V). Running it on 220V / 240V through a voltage converter-transformer voids any warranty the equipment may have. Confirm your outlet voltage before powering on.
Learn more
M.LX Motor only-must be used with a Foredom C.TXR-1 or C.SXR-1 115V foot control or a Foredom C.EMX-1 or C.EMXF-1 115V bench mount control. Never plug in directly to an outlet

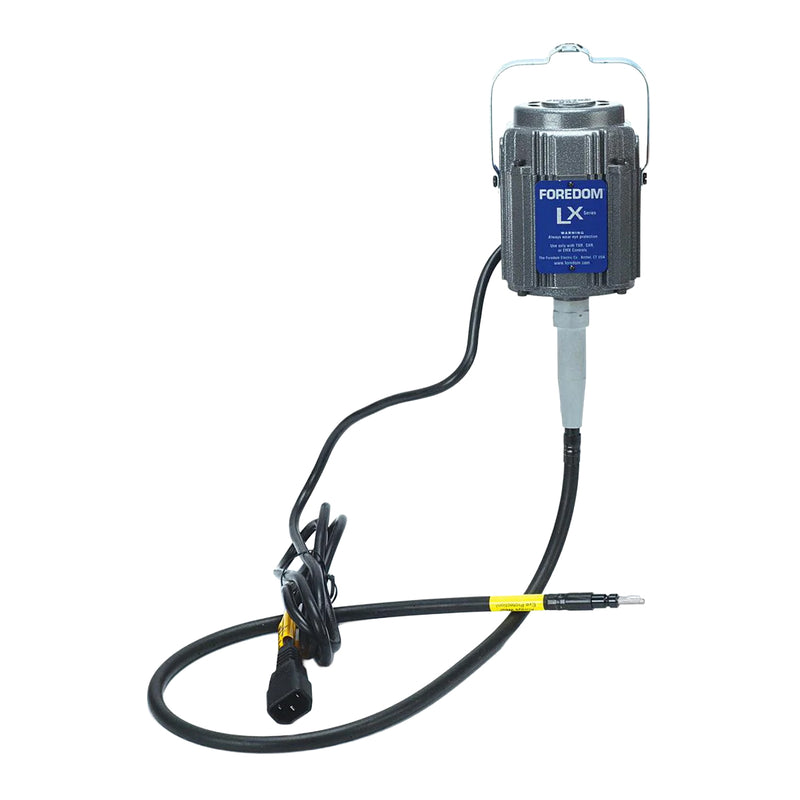

Stone setting and other cuts that have to stay slow and steady need a motor that keeps its torque at low RPM, and this Foredom M.LX is built for exactly that. Torque arrives smoothly so your burs push cleanly through metal instead of bogging down under load. It is supplied as a motor only, with a standard length key tip shaft and a flexible neoprene sheath, ready to drop into an existing flex shaft setup on 110V.
Features
High-torque, low-speed flex shaft motor optimized for stone setting applications
1/10 HP permanent magnet, ball bearing motor with a 5,000 RPM maximum speed
Motor-only configuration supplied with shaft and sheath for integrating into an existing flex shaft system
Ideal for hammer-style handpieces and duplex spring hammer handpieces run at lower speeds
Helps prevent damage to hammer handpieces with duplex springs by delivering the correct low-speed power
Standard length key tip shaft and flexible neoprene sheath for smooth, responsive handpiece control
Handpieces and compatible electronic speed controls are sold separately, so you can configure your system as needed
Compatibility
Designed for use with hammer handpieces that feature duplex springs; using this motor helps prevent spring breakage
Well suited to hammer-style handpieces intended to run at lower speeds
Connects to quick-disconnect style handpieces via the standard key tip shaft and neoprene sheath
Requires a compatible LX series electronic speed control and must not be used with SR series controls
Uses a dedicated style of plug that matches compatible LX and TX series electronic controls
Notes
This motor must be used with a speed control device. Never plug the motor directly into an electrical outlet.
Successor to earlier stone setting motors such as the EE series, R series, and original L series units.
Built for stone setters who work primarily at low speeds and need a motor that will not bog down under load.
Specifications
Brand
Foredom
Part #
134.159
Type
Rotary Tools
Voltage
110V / 120V
Dimensions
19 in x 12.5 in x 5 in
Length
19 in
Width
12.5 in
Height
5 in
Motor Type
High-torque, low-speed flex shaft motor
Motor Design
Permanent magnet, ball bearing
Motor Power
1/10 HP
Maximum Speed
5,000 RPM
Voltage
110V
Current Type
DC motor requiring a compatible electronic speed control
Included Drive Components
Standard length key tip shaft with flexible neoprene sheath
Application Focus
Jewelry stone setting and other low-speed, high-torque tasks
California Prop 65 Warning:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65warnings.ca.gov.
