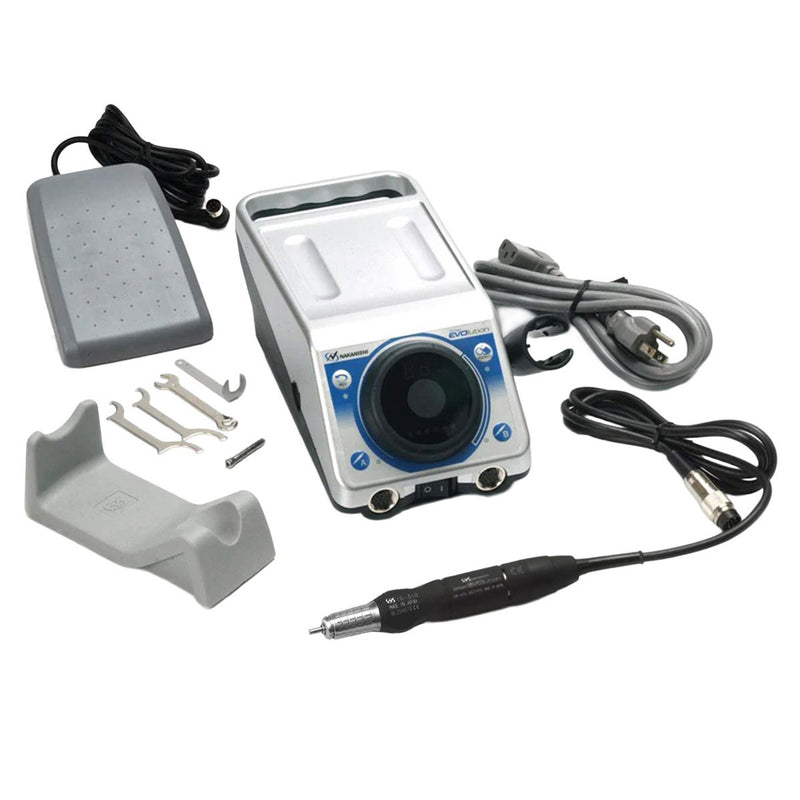

Nakanishi EMax EVOlution Micromotor Torque Motor, Twist HP & Foot Control

A complete benchtop micromotor system for jewelers who want high torque right at the handpiece without adding a reduction gear. Based on the NSK kit that educator Tonya Davidson uses for herself and recommends for her students, this special NSK EMax EVOlution kit pairs the high-torque ENK-250T motor with the IR-310 twist to open quick-change handpiece and a foot control. Tonya uses the IH-300 lever style handpiece in her kit but we offer this kit for those who prefer the twist to open IR-310 handpiece. See 134.602 for the lever style kit. The ENK-250T Torque Type motor delivers extra power that eliminates the need for an optional reduction gear, keeping the motor-to-handpiece length compact without sacrificing performance. NSK micromotors are trusted on the benches of the finest goldsmiths in the world, renowned for outstanding quality and all-day reliability.

The system delivers smooth, precise power either through the foot control or directly from the control box dial. With the foot control connected, you can choose between foot-operated set-point control or variable speed control. The IR-310 twist to open, twist-to-close mechanism allows for fast collet access without the need for wrenches or additional tools, keeping workflow smooth at the bench. This is a 120V unit. Not available for sale or shipment outside the United States and Canada.

Features

• High-torque ENK-250T motor, more powerful than standard ENK-410S motors
• Speed range of 1000–25,000 RPM, or 250–6,250 RPM with the optional reduction gear
• Forward and reverse operation
• Foot control included, with a choice of set-point control or variable speed control
• Speed set from the dial on the control box when the foot control is not connected
• IR-310 twist to open, twist-to-close mechanism for tool-free collet access and bur changes
• Extra torque eliminates the need for a reduction gear attachment
• 120V NE-249 control box, ready to use out of the box

Compatibility

• The IR-310 handpiece ships with 3/32" and 1/8" collets, so it takes burs and accessories with 3/32" and 1/8" shanks
• Optional reduction gear sold separately for 250–6,250 RPM operation

Notes

• This product is not available for sale or shipment outside the United States and Canada.
• The optional reduction gear is sold separately and is not required when using the ENK-250T Torque Type motor.
