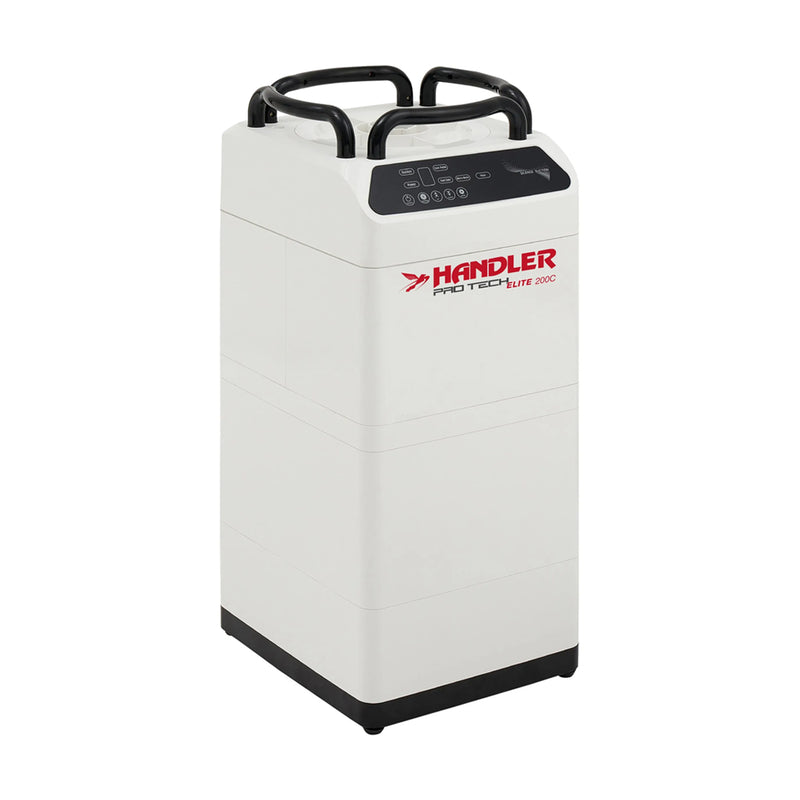

Handler 200C Multi-Use Dust Extraction System

Handler 200C Multi-Use Dust Extraction System

SKU 147.183

Single unit weight: -- lbs / -- kg

$1,090.92
por Handler

Product Details

The Handler 200C Multi-Use Dust Extraction System is a compact, high-efficiency solution engineered to capture fine particulates generated during CAM milling and bench operations. Designed for consistent airflow and advanced filtration, it maintains a cleaner, safer workspace—running quietly in the background while delivering powerful extraction performance.

Features

  • 9-stage suction system optimized for CAM milling and fine dust capture
  • High-performance airflow up to 150 CFM with strong suction pressure
  • Triple-stage filtration system for progressive particle removal
  • Integrated system includes motor, control panel, filtration, hose, and CAM interface
  • Quiet operation at approximately 55 dB for reduced workspace noise
  • Compact, lightweight design for flexible bench or lab placement
  • Stable single-phase power configuration for consistent operation

Specifications

Model 200C
Series Pro Tech Elite
Maximum Airflow 150 CFM
Maximum Pressure 23 kPa (3.34 psi)
Filtration System 3-stage: HEPA drum cartridge, ULPA (99.9995% at 0.12 µm), air filter
Noise Level 55 dB
Power 100–120V, 50/60Hz, 1200W, single phase
Voltage 115V AC
Dimensions 11.3 in (287 mm) W × 11.6 in (295 mm) D × 29 in (737 mm) H
Weight 30 lbs (13.6 kg)
Brand Handler

Notes

  • Designed for use with CAM milling systems and fine particulate extraction applications
  • Ensure proper filter maintenance and replacement to maintain optimal performance
