Foredom K.TX301 Flex Shaft Kit with Hanger

The Foredom K.TX301 Flex Shaft Kit with Hanger brings together Foredom's high-torque Series TX platform with everything needed to start working at the bench. The M.TX motor is a 1/3 HP permanent-magnet DC design, where rare-earth magnets maintain strong torque under load across the full speed range — from a standing start up to 15,000 rpm. Whether you're cutting, drilling, grinding, deburring, or polishing, the TX delivers smooth, controlled power at low, mid, and high speeds. The included MAMH-1 bench clamp hanger positions the motor correctly above the work surface for proper cable drop and natural handpiece feel.

Features

• High torque at all speeds: Permanent-magnet DC design maintains torque under load throughout the speed range.
• Wide speed range: Smooth acceleration from 0 to 15,000 rpm via the included foot control.
• Precise speed modulation: C.TXR variable-speed foot control enables fine adjustments for delicate and detail work.
• Versatile handpiece: H.30 keyed chuck handpiece accepts a broad range of mandrels and accessories.
• Ready to mount: MAMH-1 bench clamp hanger secures the motor at the bench for correct cable drop and ergonomic positioning.
• Kit includes accessories: AK11 assorted burs and accessories are included so you can begin working immediately.

Specifications

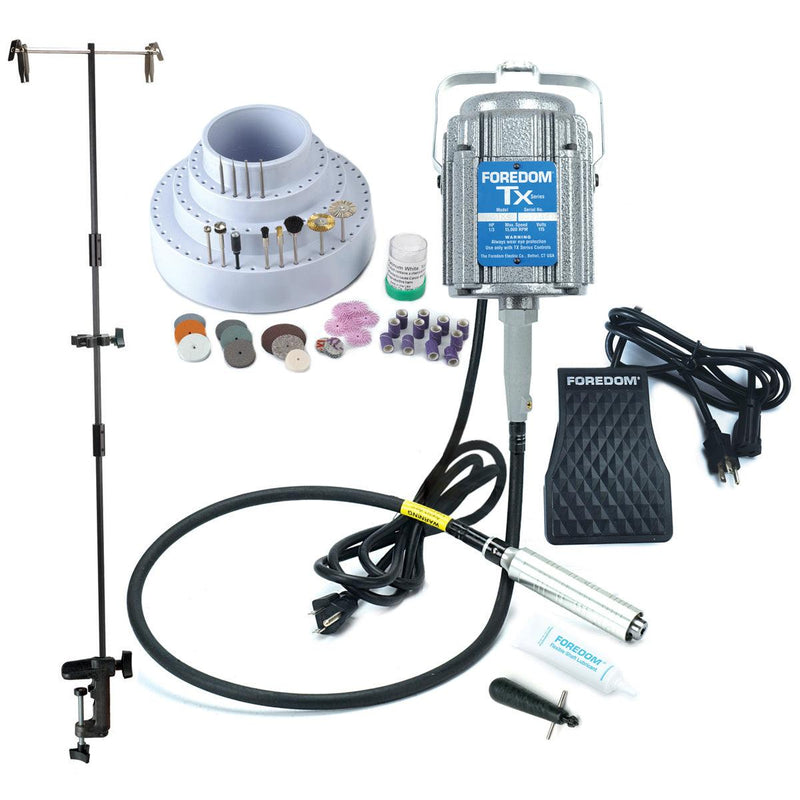

What's Included

• M.TX — 1/3 HP permanent-magnet hi-torque motor
• C.TXR — variable-speed foot control
• H.30 — keyed chuck-style handpiece
• AK11 — assorted burs & accessories kit
• MAMH-1 — bench clamp flex-shaft motor hanger

Notes

• Always use with a speed control. Do not plug the M.TX motor directly into a wall outlet — always operate through the included C.TXR foot control or a compatible speed controller.
• The Series TX replaces Foredom's retired Series R motor and represents Foredom's most powerful flex-shaft platform.
• This kit is rated for 110V operation only; 230V versions of the TX and TXH are not available.
