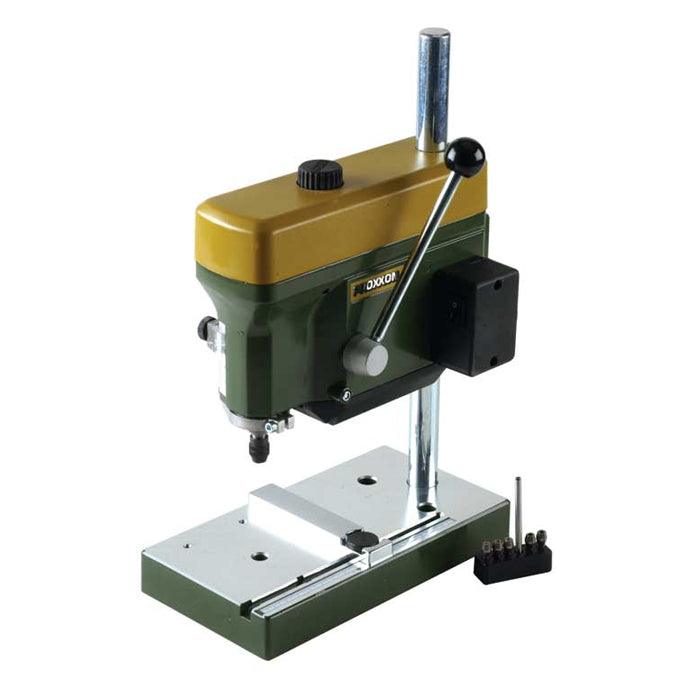

Proxxon TBM 115 Precision Drill Press

Part # 134.390

Single unit weight: -- lbs / -- kg

Original price $0.00 - Original price $0.00
Original price $0.00
$374.40
$374.40 - $374.40
Current price $374.40
by Proxxon

Product Details

The Proxxon TBM 115 is a quiet, stable precision drill press with a built-in motor designed for controlled drilling in precious metals, plastics, wax, and other fine materials. Three belt-driven spindle speeds let you match the machine to the material, while the integrated motor keeps vibration low for accurate, repeatable results on delicate jewelry and model work.

Features

  • Quiet, low-vibration operation with integrated motor
  • Three spindle speeds for material-appropriate drilling: 1,800 / 4,700 / 8,500 RPM
  • Six precision collets included covering common micro-drill sizes
  • Compact work surface sized for jewelry and model work
  • Suitable for precious metals, plastics, wax, and similar fine materials

Specifications

Work Surface 8-11/16" W × 4-11/16" D (220 × 120 mm)
Maximum Drill Height 5-1/2" (140 mm)
Spindle Speeds 1,800 / 4,700 / 8,500 RPM
Voltage 110–120 V
Power 85 W
Included Collets 0.04"–0.125" (1.0, 1.5, 2.0, 2.4, 3.0, 3.2 mm)

What's Included

  • Proxxon TBM 115 precision bench drill press
  • Six precision collets: 1.0, 1.5, 2.0, 2.4, 3.0, and 3.2 mm

Notes

To use drill sizes outside the included collet range, add the adapter drill chuck (Part No. 128.216).

California Prop 65 Warning California Prop 65 Warning:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. www.P65warnings.ca.gov.
