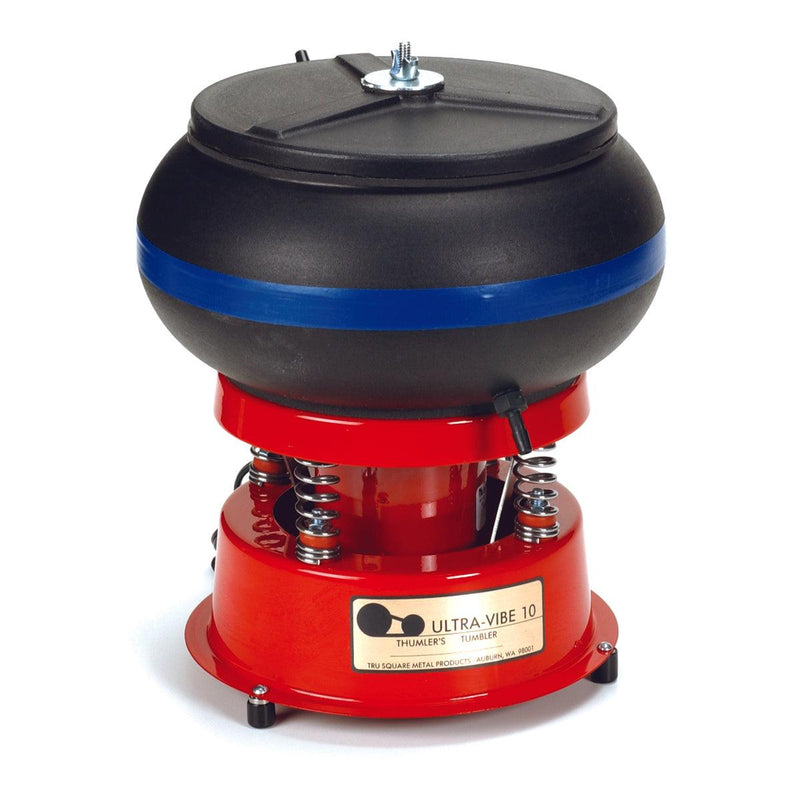

Thumler's Tumbler Model UV-10 Three Quart Vibratory Tumbler-110V or 230V

The Thumler’s Tumbler UV-10 is an industrial-grade vibratory tumbler with a 3-quart bowl and flow-thru ports for consistent, professional results. It handles up to ~50 ladies’ rings with media and supports both wet and dry processes. For burnishing, the manufacturer does not recommend steel shot—use porcelain media instead. Made in the USA.

Key Features

• 3-quart bowl with integrated flow-thru connections to keep solution and media clean
• Faster than rotary tumbling for most cut-down cycles
• Runs wet with plastic/ceramic media and detergent; runs dry for final polish
• Voltage options available: 110V or 230V
• Made in the USA

Specifications

What’s Included

• UV-10 vibratory tumbler with bowl and lid
• Flow-thru hose connections on the bowl

How to Use

1. Cut-down (wet): Use plastic or ceramic media with a mild detergent. Run flow-thru so fresh solution drips in while spent solution drains out; typical cycles are 4–6 hours or longer.
2. Pre-polish (wet): Switch to a milder media to refine surfaces.
3. Final polish (dry): Use dry polishing media for a bright finish.

Compatible Media (Porcelain)

• Porcelain Balls, 1 mm — 1 lb (147.601)
• Porcelain Balls, 2 mm — 1 lb (147.602)
• Porcelain Balls, 3 mm — 1 lb (147.603)
• Porcelain Balls, 4 mm — 1 lb (147.604)
• Porcelain Balls, 6 mm — 1 lb (147.605)

Notes

• Steel shot is not recommended for this model; porcelain media is advised for burnishing.
• Follow manufacturer guidance and use the flow-thru system during wet cut-down for best, most consistent results.
