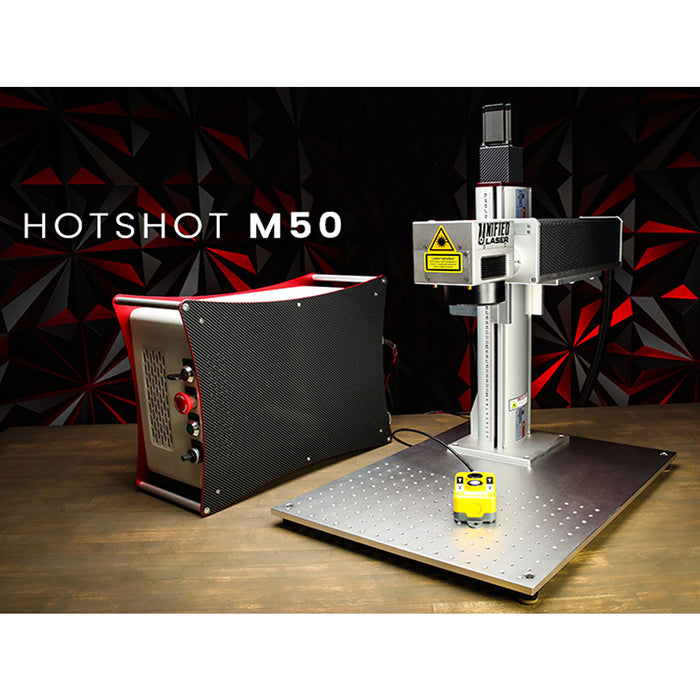

Unified Hotshot M50 Fiber Laser Engraving System 50W

Unified Hotshot M50 Fiber Laser Engraving System 50W

Part # 126.085

Single unit weight: -- lbs / -- kg

$16,000.00
by Otto Frei

Product Details

The Unified HotShot M50 is a modular, space-saving fiber laser engraving system tuned for everything from delicate fine marks to deep engraving on metals, as well as select plastics, polymers, and ceramics. Each system ships factory calibrated for power and field size to help ensure repeatable, consistent results straight out of the box. Two F-Theta lenses are included, and Unified's Lens Swapper software lets you select the right lens for each job without manual reconfiguration.

Features

  • 50W pulse fiber laser with fine mark to deep engrave capability on metals, ceramics, and select polymers
  • Class 4 open platform for maximum access and workflow flexibility
  • Factory calibration — power and field correction — for accuracy and consistency from first use
  • Includes two F-Theta lenses with Lens Swapper software for quick lens selection
  • Visible red-beam pointer for easy job alignment
  • Motorized Z-axis with potentiometer control
  • Air-cooled, low-maintenance internal cooling design
  • Supports inside and outside rotary orientation when used with a rotary accessory

Specifications

Laser Type Pulse fiber laser
Platform Class 4 / Open
Nominal Wavelength 1064 nm
Average Power (max) 50 W
Pulse Energy (max) 1.25 mJ
Repetition Rate (frequency) 1–600 kHz
Beam Quality (M²) < 1.8
Pulse Width 200 ns
Scanhead Speed (max) 10,000 mm/s (≈374 in/s)
Engraving Area Lens dependent
F-Theta Lens Options 100, 163, 254 mm (two lenses included)
Spot Size Range 15–80 µm (0.0006–0.003 in)
Rotary Orientation Inside & outside (rotary accessory required)
Z-Axis Motorized with potentiometer
Cooling Air cooled (internal)
Power Requirements 120 V (±10%), 16 A, 50/60 Hz
Operating Temperature 32–104 °F (0–40 °C)
Dimensions 24" L × 18" W × 29" H (610 × 457 × 737 mm)
Weight 125 lb (57 kg)

What's Included

  • HotShot M50 laser system (factory calibrated)
  • Two F-Theta lenses (focal lengths per package)
  • Lens Swapper software
  • Visible red-beam positioning laser

Notes

  • Class 4 open lasers require appropriate 1064 nm laser safety eyewear and controlled access at all times during operation.
  • Select the focal lens that matches your required field size and spot size — smaller focal lengths yield finer detail and smaller spot sizes.
  • Laser engravers are not eligible for discounts.
